Non Rising Stem Resilient Seated Gate Valves, Cast iron, Ductile iron
Key Specifications / Features
Model No.: SJ-GV-08 Hits: 158
China Non Rising Stem Resilient Seated Gate Valves Manufacturer Shinjo Supplies Non Rising Stem Resilient Seated Gate Valves, Cast iron, Ductile iron.
Request a quote
Share
Tags:
Detail Information
Non rising stem resilient seated gate valve summary
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.
Technical Parameters
Nominal pressure: 1.0-2.5MPa
Working temp.:0-120°C
Flanged end: GB/T17241.6 GB9113
Nominal diameter: 50-400mm
Service: water, Sewage, oils, gas etc.
Inspection and test: API 598
Non rising stem resilient seated gate valveThe valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.
Technical Parameters
Nominal pressure: 1.0-2.5MPa
Working temp.:0-120°C
Flanged end: GB/T17241.6 GB9113
Nominal diameter: 50-400mm
Service: water, Sewage, oils, gas etc.
Inspection and test: API 598

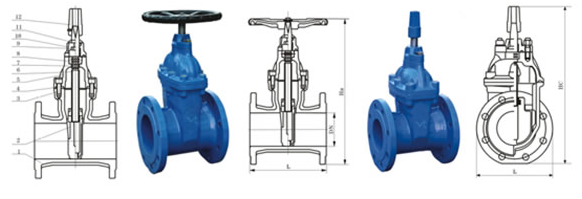

Materials
| Serial no. | part | material |
| 1 | Body | Grey cast iron, ductile cast iron, cast steel |
| 2 | Disc | Ductile cast iron packed with rubber or EDPM outside |
| 3 | Bolt | Carbonized treatment |
| 4 | Gasket | Buna-N rubber or EDPM |
| 5 | Cover | Grey cast iron, ductile cast iron, cast steel |
| 6 | Stem | stainless steel |
| 7 | O-ring | Buna-N rubber or EPDM |
| 8 | Thrust bearing | Gun metals |
| 9 | Bolt | Stainless steel |
| 10 | Gland | ductile cast iron, cast steel |
| 11 | Dust proof gasket | Buna-N rubber |
| 12 | Hand wheel(transmission cap) | Cast iron |
Dimensions
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
| H (min)(full close) | 313 | 332 | 372 | 424 | 497 | 562 | 680 | 837 | 948 | 1010 | 1220 | 1280 | 1480 | 1665 |
| H (max)(full open) | 355 | 375 | 415 | 476 | 540 | 600 | 720 | 875 | 990 | 1050 | 1245 | 1310 | 1560 | 1750 |
