Pneumatic Actuated Knife Gate Valve, Carbon steel, Stainless steel, 904L, Titanium
Key Specifications / Features
Model No.: SJ-GV-09 Hits: 71
Detail Information
PZ673 Pneumatic Actuated Knife Gate Valve
Knife Gate Valve is used to slice through sludge or sewerage and a gate is used fro normal positive shut off .It is a gate valve design that is distinguished from the standard design by the use of a simple metal plate for the gate and the absence of a bonnet; also called a slide valve.
PZ673 DN600 double flange pneumatic knife gate valve
Knife gate valve is a uni-directional or bi-directional valve designed for general industrial service applications. Knife gate valves used for pressure tight isolation of solid-liquid mixes in water and waste water treatment plants and pumping stations, paper and pulp plants, power plants and mining industry.
PZ673 DN600 double flange pneumatic knife gate valve
Specification

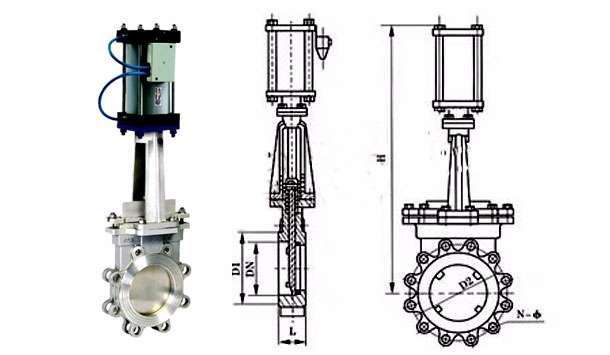

PZ673 Pneumatic Actuated Knife Gate Valve
Main parameter of PZ673 Pneumatic Actuated Knife Gate Valve
| Nominal Pressure (MPa) |
Test Pressure(MPa) | Working Temperature ℃ |
Suitable Medium | |
| Shell | Seal | |||
| 1.0 | 1.5 | 1.1 | Rubber seal ≤ 80℃ | Syrup, pulp,sewage,coal slurry,ash,slag and other mixtures. |
| 1.6 | 2.4 | 1.8 | Metal seal ≤ 425℃ | |
Material of PZ673 Pneumatic Actuated Knife Gate Valve
| Body, Bonnet | Disc | Stem | Sealing surface |
| Stainless steel Carbon steel Gray cast steel |
Stainless steel Carbon steel |
Stainless steel | NBR PTFE Stainless steel Hard alloy |
