Short Description

Model No.: SJ-ECV-05 Hits: 23

China Electric Double Seat Control Valve Manufacturer Shinjo Supplies ZAZN Electric Double Seat Control Valve, WCB, WCC, WC6.
Request a quote Share

Key Specifications / Features

BRIEF INTRODUCTION



The ZAZN electric double seat control valve is made of DKZ or ZAZ types electric actuator and the double seat valve body. DKZ type has servo system in the actuator, so it can be operated automatically. The wire of the actuator is simple, the hard sealing type valves are suitable for the working condition of high temperature and pressure, and the soft sealing types are suitable for normal temperature and strict leakage condition.







DESIGN PRINCIPLE



The difference between the normal type double seat control valves and cage type double seat control valves are as bellow:
There are two units’ seat, plugs and sealing surface in the normal type double seat control valves, while as for the cage type, it also has two units sealing surface, but it only has one plug. Because of the two flow channel, so the flow capacity (CV) of the double seat control valves are bigger than the single seat type, but the leakage grade is lower than the single seat type, it is usually grade Ⅱ, at most grade Ⅲ.
Same with the cage type control valve, the double seat type also apply with the balanced structure, and the principle is different, the cage type applies with the balanced valve plug structure, while the double seat type applies the balanced structure with the double plug. Compare with cage type, the double seat type are more suitable for the medium with slight impurity or dust. Because of the complex flow channel of double seat control valve, its unbalance force direction will changed with the fluctuation of the differential pressure, so it will vibrate when in the position of small opening, even the serious vibration and noise sometimes.







STRUCTURE AND MATERIAL

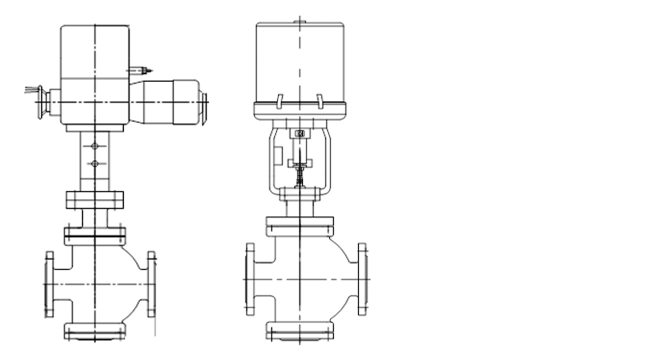

ZAZN Electric Double Seat Control Valve Structure
ZAZN Electric Double Seat Control Valve Materials

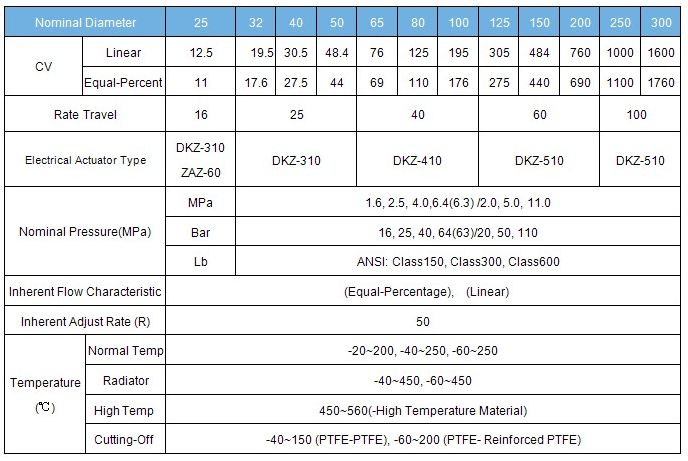

TECHNICAL PARAMETER
ZAZN Electric Double Seat Control Valve Technical Parameter
