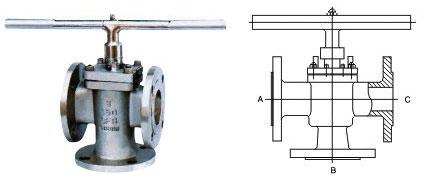

3 Way Plug Valve API 599, AP1 6D, GB 12240, Class 150-900 LB
.jpg?q=90&fm=webp&s=0c243f5e3e670595b3940817c0b72244)
Key Specifications / Features
Model No.: SJ-PV-01 Hits: 153
China 3 Way Plug Valve Manufacturer Shinjo Supplies 3 Way Plug Valves, API 599, AP1 6D, GB 12240, Class 150, Class 300, Class 600, Class 900 LB.
Request a quote
Share
Tags:
Detail Information
Specifications:
Structural formation: BB-BG.
Diving manner: Hand wheel, worm, worm gear, pneumatic, electric-actuated.
Design standard: AP1 599, AP16D, GB12240.
Face to face: ASME B16.10, GB 12221, DIN 3202.
Flange end: ASME B 16.5, JB79, GB9113, DIN 2543-2545.
Test & inspection: AP1 598, AP16D, GB13927, DIN3230.
Structural formation: BB-BG.
Diving manner: Hand wheel, worm, worm gear, pneumatic, electric-actuated.
Design standard: AP1 599, AP16D, GB12240.
Face to face: ASME B16.10, GB 12221, DIN 3202.
Flange end: ASME B 16.5, JB79, GB9113, DIN 2543-2545.
Test & inspection: AP1 598, AP16D, GB13927, DIN3230.
Performance:
| Pressure Rate | Shell test (MPa) | Sealing test (MPa) |
| 150 | 3.0 | 2.2 |
| 300 | 7.5 | 5.5 |
| 600 | 15.0 | 11.0 |
| 900 | 22.5 | 16.5 |
| PN(MPa) | Shell test (MPa) | Sealing test (MPa) |
| 1.6 | 2.4 | 1.76 |
| 2.5 | 3.75 | 2.75 |
| 4.0 | 6.0 | 4.4 |
| 6.4 | 9.6 | 7.04 |
| 10.0 | 15.0 | 11.0 |
| 16.0 | 24.0 | 17.6 |
