Short Description

Model No.: SJ-BV-04 Hits: 47

China A105 3PCS Forged Ball Valves Manufacturer Shinjo Supplies ASTM A105 Three Piece Forged Ball Valves, Class 800/1500/2500, Threaded, SW, BW Ends.
Request a quote Share

Key Specifications / Features

Features:
Size: 1/2"~2" (DN 15 - 50mm).
Class: 800/1500/2500.
Three Pieces Forged Steel Body.
Floating Ball, Full Bore.
Anti-Static Device.
Screwed and Socket Welded Ends.
Blow-out Proof Stem.

Standards:
Design: ASME B16.34 / BS 5351.
Face to Face: Manufacturer Standard.
End to End: Manufacturer Standard.
Threaded End: ASME B1.20.1.
Socket Welding & BW End: ASME B16.11.
Test: API 598/BS 6755.
Fire Safe Test: API 597/API 6FA.

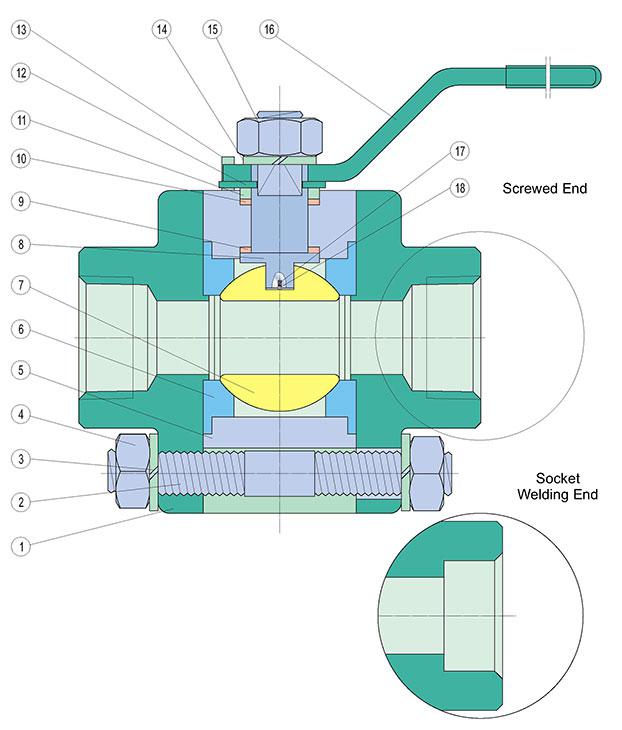

ASTM A105 3PC Forged Ball Valves Class 800/1500/2500 Drawing

Parts Material: A105/304, A105/316.
1. Adapter: ASTM A105, ASTM A105.
2. Body Bolt: ASTM A193-B7, ASTM A193-B7M.
3. Spring Washer: Carbon Steel, Carbon Steel.
4. Body Nut: ASTM A194-2H, ASTM A194-2HM.
5. Body: ASTM A105, ASTM A105.
6. Seat: PTFE, PTFE.
7. Ball: ASTM A182-F304, ASTM A182-316.
8. Stem: ASTM A276-304, ASTM A276-316.
9. Thrust Washer: PTFE, PTFE.
10. Stem Packing: PTFE, PTFE.
11. Gland: ASTM A276-410, ASTM A276-410.
12. Stop Plate: Carbon Steel, Carbon Steel.
13. Stop Pin: Carbon Steel, Carbon Steel.
14. Spring Washer: Carbon Steel, Carbon Steel.
15. Lever Nut: ASTM A194-2H, ASTM A194-2H.
16. Lever: Carbon Steel, Carbon Steel.
17. Antistatic Spring: Stainless Steel, Stainless Steel.
18. Steel Ball: Stainless Steel, Stainless Steel.

ASTM A105 3PC Forged Ball Valves Class 800/1500/2500 Drawings

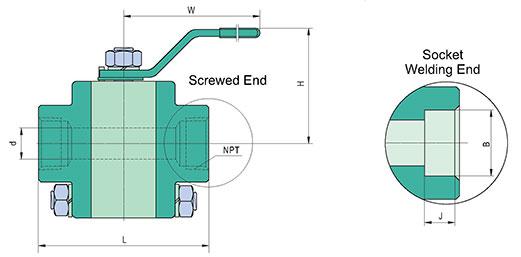

Dimension & Weight
Size D L H W B J NPT Weight
IN mm mm mm mm mm mm IN Kg
1/2 14 92 65 130 21.8 9.6 1/2" 1.7
3/4 18 111 75 160 27.2 12.7 3/4" 2.5
1 24 127 80 220 33.9 12.7 1" 4.5
1-1/4 30 140 100 250 42.7 12.7 1-1/4" 7
1-1/2 38 152 110 250 48.8 12.7 1-1/2" 8.8
2 48 152 125 290 61.2 15.7 2" 10
