Cast Iron Rising Stem Gate Valve, Class 125/150 LB
Key Specifications / Features
Model No.: Hits: 8
China Cast Iron Gall Valve Manufacturer Shinjo Supplies Cast Iron Rising Stem Gate Valve with ANSI 125LB and 150LB flange standard.
Request a quote
Share
Tags:
Detail Information
SIZE RANGE AND PRESSURE CLASS
Size from 2" to 12” (DN50-DN300)
Pressure rating: 125LB/150LB
DESIGN STANDARD
Design and Manufacture: ANSI
Flange Ends Dimensions standards: ANSI B16.1 Class 125/Class 150 LB
TECHNICAL FEATURES
Body material cast iron and ductile iron (GGG40, GGG50)
Rising stem design
RF and FF flange facing
Water application
Size from 2" to 12” (DN50-DN300)
Pressure rating: 125LB/150LB
DESIGN STANDARD
Design and Manufacture: ANSI
Flange Ends Dimensions standards: ANSI B16.1 Class 125/Class 150 LB
TECHNICAL FEATURES
Body material cast iron and ductile iron (GGG40, GGG50)
Rising stem design
RF and FF flange facing
Water application
|

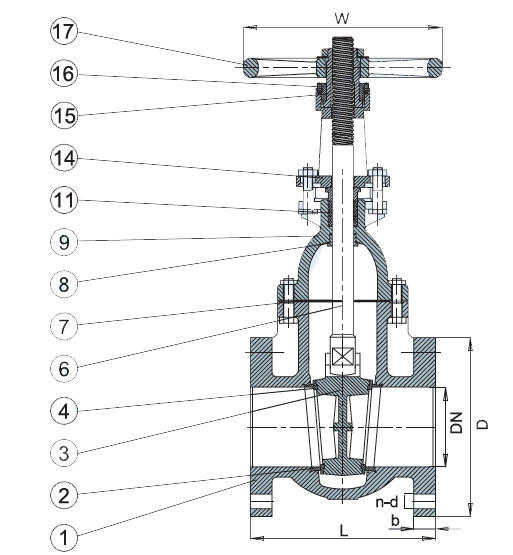

Main Parts and Materials |
||
|
Number |
Part Name |
Material |
|
1 |
Body |
Grey Iron A126-B |
|
2 |
Disc |
Ductile Iron/A536 |
|
3 |
Trim |
SS304 |
|
4 |
Sealing |
Stainless steel/Brass |
|
5 |
Handwheel |
Ductile Iron/A536 |
|
Main Dimensions |
|||||||
|
Norminal diameter |
L |
D |
D1 |
b |
n-d |
H1 |
H2 |
|
50 |
177.80 |
152 |
120.7 |
15.9 |
4×Φ19 |
318 |
375 |
|
65 |
190.50 |
178 |
139.5 |
17.5 |
4×Φ19 |
338 |
408 |
|
80 |
203.20 |
190 |
152.5 |
19.1 |
4×Φ19 |
353 |
442 |
|
100 |
228.60 |
229 |
190.5 |
23.9 |
8×Φ19 |
433 |
545 |
|
125 |
254.00 |
254 |
216 |
23.9 |
8×Φ22 |
516 |
656 |
|
150 |
266.70 |
279 |
241.5 |
25.4 |
8×Φ22 |
603 |
770 |
|
200 |
292.10 |
343 |
298.5 |
28.6 |
8×Φ22 |
737 |
959 |
|
250 |
330.20 |
406 |
362 |
30.2 |
12×Φ25 |
979 |
1255 |
|
300 |
355.60 |
483 |
432 |
31.8 |
12×Φ25 |
1115 |
1443 |
