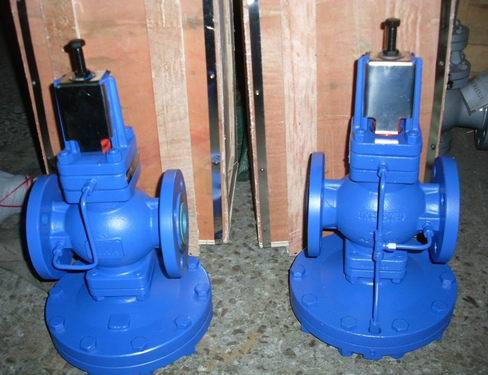

DP17 GG-20 Steam Pressure Reducing Valve (PRV) 2.5 Mpa

DP17 GG-20 Steam Pressure Reducing Valve (PRV) 2.5 Mpa

DP17 GG-20 Steam Pressure Reducing Valve (PRV) 2.5 Mpa

Short Description

Model No.: SJ-PRV-01 Hits: 73

China GG-20 Steam Pressure Reducing Valve Manufacturer Shinjo Supplies GG-20 Steam Pressure Reducing Valve, DP17, 2.5 Mpa, Super High Sensitivity.
Request a quote Share

Key Specifications / Features

Performance:
Nominal Pressure: 2.5 MPa.
Casing Body Test Pressure: 3.75 MPa.
Sealing Test Presure: 2.5 MPa.
Max. nlet presure: 2.5 MPa.
Outlet pressure range: 0.02 - 1.6 MPa.

DP17 GG-20 Steam Pressure Reducing Valve (PRV) 2.5 Mpa



















Parts & Material:
Body, Bonnet: GG-20, WCB, 304 S.S.
Seat: 410 S.S.
Plug: 410 S.S.
Diaphragm: 321 S.S.
Adjustable Spring: UNS G92600.

Flow Factor(Cv):
DN: 15, 20, 25, 32, 40, 50.
Cv: 2.9, 5.3, 8.6, 11.6, 16.5, 29.1.

DP17 GG-20 Steam Pressure Reducing Valve (PRV) 2.5 Mpa

DN L H1 H D
15 147 235 145 207
20 154 235 145 207
25 160 235 145 207
32 180 250 160 220
40 16 250 160 220
50 230 270 180 220
