Foot Valve with Stainless Steel Mesh, PN16, Ductile Iron
Key Specifications / Features
Model No.: Hits: 9
China Foot Valve Manufacturer, Shinjo Offers Foot Valve with Stainless Steel Mesh, PN16, Ductile Iron Material, Size from DN40 to DN300.
Request a quote
Share
Tags:
Detail Information
Design Standards:
GB PN10/16
Flange in accordance to BS EN 1092-2
Feautres:
GB PN10/16
Flange in accordance to BS EN 1092-2
Feautres:
- Ductile iron GGG50 material
- Ductile iron body – Coated epoxy
- Stainless steel 304 mesh
- Size from DN40 to DN300
- Suitable for drinking water & treated sewage

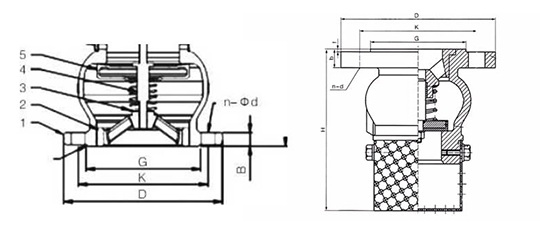

| DN | H | L | K | G | f | B | n-d | ||||
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | ||||
| 40 | 143 | 150 | 110 | 84 | 3 | 18 | 18 | 4﹣19 | 4﹣19 | ||
| 50 | 165 | 165 | 125 | 99 | 3 | 20 | 20 | 4﹣19 | 4﹣19 | ||
| 65 | 201 | 185 | 145 | 118 | 3 | 20 | 20 | 4﹣19 | 4﹣19 | ||
| 80 | 221 | 200 | 160 | 132 | 3 | 22 | 22 | 8﹣19 | 8﹣19 | ||
| 100 | 265 | 220 | 180 | 156 | 3 | 24 | 24 | 8﹣19 | 8﹣19 | ||
| 125 | 300 | 250 | 210 | 184 | 3 | 26 | 26 | 8﹣19 | 8﹣19 | ||
| 150 | 360 | 285 | 240 | 211 | 3 | 26 | 26 | 8﹣23 | 8﹣23 | ||
| 200 | 470 | 340 | 295 | 266 | 3 | 26 | 30 | 8﹣23 | 12﹣23 | ||
| 250 | 568 | 405 | 350 | 355 | 319 | 3 | 28 | 32 | 12﹣23 | 12﹣28 | |
| 300 | 658 | 460 | 400 | 410 | 370 | 4 | 28 | 32 | 12﹣23 | 12﹣28 | |
