JBB Series Mechanical Diaphragm Metering Pump

JBB Series Mechanical Diaphragm Metering Pump (14lph-130lph,10-4bars)

JBB Series Mechanical Diaphragm Metering Pump (14lph-130lph,10-4bars)

Short Description

Model No.: SJ-MP-02 Hits: 1

China Diaphragm Metering Pump Manufacturer Shinjo Supplies JBB Series Mechanical Diaphragm Metering Pump (14lph-130lph,10-4bars).
Request a quote Share
Tags:

Key Specifications / Features

JBB series mechanical diaphragm metering pumps are spring type pumps with mirco motor and reducer. It is robust and oil-free design. The rated power is only 60W, while the max pressure can be up to 10 bars, and max capacity can be up to 130lph. It is an ideal metering pump for all chemical dosing applications.


Features:
l  Compact and robust design.
l  Multilayer compostie PTFE diaphragm, long service life.
l  Reinforced plate design after the diaphragm.
l  Flow adjustment by the micrometer manually.
l  Fluid max temperture:   70℃(158℉)

Materials:
l  Pump head: PVC, PTFE,SS304,SS316
l  Diaphragm: Composite PTFE diaphragm
l  Check Valve: PVC, PTFE,SS304,SS316 (same as pump head selection)
l  Valve ball: Ceramic or SS304
l  Valve seat: PTFE,SS316


Power Supply:
380V 3 phase on standard, single phase or other voltage on request; DC powered motor 12V or 24V is available.

Parameter Table:
Model 50Hz 60 Hz Pressure Diaphragm
Dia.
(mm)
Power
Flow
(lph)
Flow
(gph)
SPM Flow
(gph)
Flow
(lph)
SPM (Bar) (Psi)
JBB15/1.0 14 3.7 100 4.4 17 120 10 145 60 60W
JBB25/1.0 25 6.6 100 7.9 30 120 10 145
JBB40/0.7 38 10 150 12 46 180 7 102
JBB60/0.6 60 16 100 19 72 120 6 87 84
JBB80/0.5 80 21 100 25 96 120 5 73
JBB100/0.4 100 26 150 32 120 180 4 58
JBB130/0.4 130 34 150 41 156 180 4 58


Standard Connection
Model PVC PTFE SS
JBB15~JBB40 6.5*10mm PE hose RC 1/2"F DN15 welding union
JBB60~JBB130 10*14mm PE hose RC 1/2"F DN15 welding union
Note: PVC DN15 glue union connection is available.

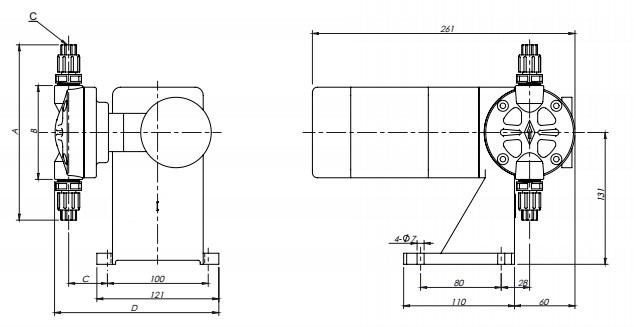

Installation Drawing:
JBB series mechanical diaphragm metering pump drawing
