Plastic Magnetic Pump 8m-32m 1.8 m3/h-100 m3/h DN32-DN100 1.1-37kW

Plastic Magnetic Pump 8m-32m 1.8 m3/h-100 m3/h DN32-DN100 1.1-37kW

Plastic Magnetic Pump 8m-32m 1.8 m3/h-100 m3/h DN32-DN100 1.1-37kW

Short Description

Model No.: SJ-MDP-01 Hits: 14

China Plastic Magnetic Pump Factory Shinjo Offers Fluorine Plastic Magnetic Drive Pump, Lift Head 8m-32m, 1.8 m3/h-100 m3/h, DN32-DN100, 1.1 kW-37 kW.
Request a quote Share

Key Specifications / Features

Fluorine Plastic Magnetic Pumps

plastic-magnetic-pump-8m-32m-1-8-m3-h-100-m3-h-dn32-dn100-1-1-37kw

Outlet Diameter 32 - 100 (mm)
1. Flow Rate (Q) 3.2 - 100 (m3/h)
2. Lift Head (H) 8 - 80 (m)
3. Power Consumption 1.1 - 37 (Kw)

Features and applications
The Series CQB magnetic pumps have been developed from a unique design. The components in the flowing path of the pumps are made of fluorine plastics, ceramics and fluorine rubber, offering the attractive features such as small and compact structure, less noisy, high corrosion resistance, mechanical durability. There is no process of aging and toxic decomposition for the product. The fluorine plastics magnetic pumps can be used in the chemical, acid/base producing, pharmaceutical, petroleum, electric plating, environment production, rare earth separation, and automobile industries for pumping acids, bases, oils, valuable liquids, toxic or volatile liquids, especially flammable, easy to leak and explosive fluids.

Model
 plastic-magnetic-pump-8m-32m-1-8-m3-h-model

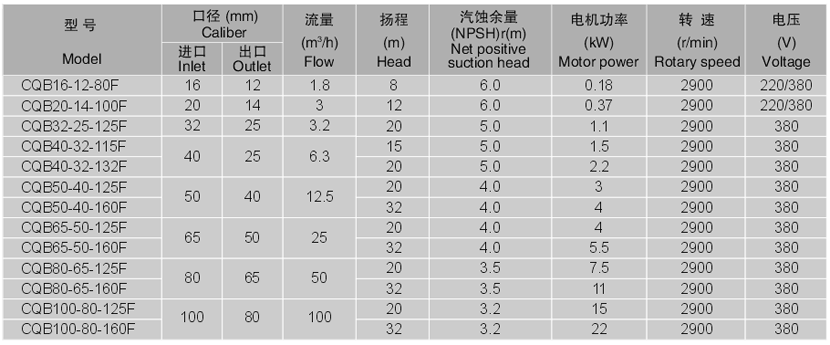

Datasheet
 plastic-magnetic-pump-8m-32m-1-8-m3-h-data-sheet

Performance Curve
 plastic-magnetic-pump-8m-32m-1-8-m3-h-performance-curve

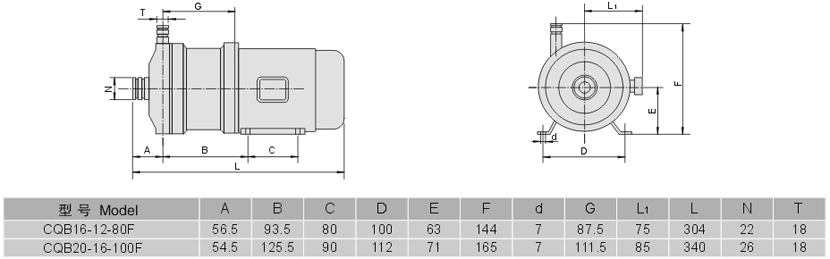

Installation Dimensions
plastic-magnetic-pump-8m-32m-1-8-m3-h-installation-dimensions
 plastic-magnetic-pump-8m-32m-1-8-m3-h-installation-dimensions-02
