Resilient Seated Gate Valve – DIN F4, PN16, Ductile Iron
Key Specifications / Features
Model No.: Hits: 21
China Resilient Seated Gate Valve Manufacturer, Shinjo Offers Resilient Seated Gate Valve DIN F4, PN16, Ductile Iron, Size from DN50 to DN300.
Request a quote
Share
Tags:
Detail Information
Design Standards:
DIN 3202-F4Flange in accordance to BS EN 1092-2
Series 14 according to EN 558
Feautres:
- Wedge ductile iron GGG50 encapsulated with EPDM
- Ductile iron body & bonnet – Coated epoxy
- Size from DN50 to DN300
- Non-rising stem design
- Nylon Guide for smooth operation and low torque
- Wedge ductile iron GGG50 encapsulated with EPDM
- Suitable for drinking water & treated sewage
- Suitable for Horizontal or vertical pipelines

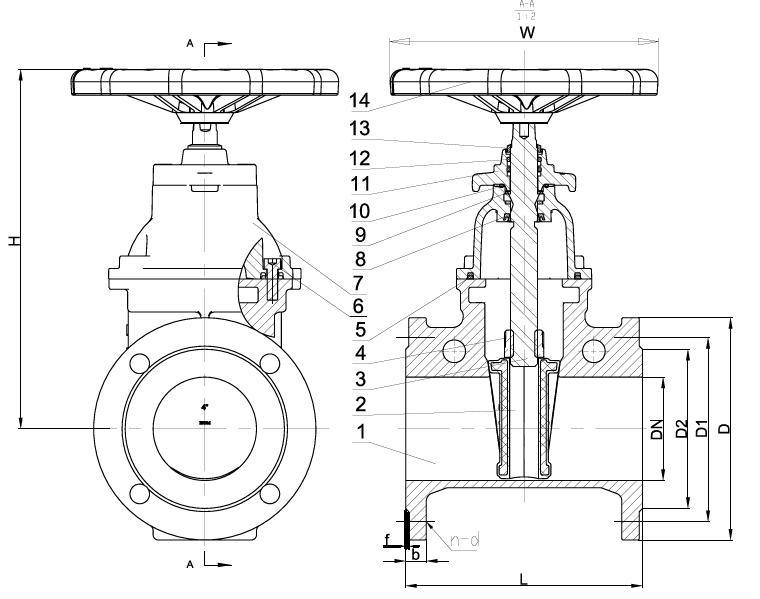

| Model DN | Face to Face L-mm | Center height h-mm |
Hand wheel diamete D-mm |
Nominal diamet a-mm | Flange diameter d-mm | Hole center distance c-mm | Hole number and aperture x-n | The flange thickness (containing water) T-mm | Boss height f-mm | Crown diameter g-mm | Nominal Pressure |
| 50 | 150 | 241 | 138 | 50 | 158 | 125 | 4-Φ18 | 16.5 | 2 | 99 | PN16 |
| 65 | 170 | 270 | 173 | 65 | 180 | 145 | 4-Φ18 | 17 | 2 | 118 | |
| 80 | 180 | 292 | 173 | 80 | 196 | 160 | 8-Φ18 | 19 | 3 | 132 | |
| 100 | 190 | 333 | 200 | 100 | 215 | 180 | 8-Φ18 | 20 | 3 | 156 | |
| 125 | 200 | 384 | 230 | 125 | 250 | 210 | 8-Φ18 | 20 | 3 | 184 | |
| 150 | 210 | 420 | 230 | 150 | 280 | 240 | 8-Φ23 | 20 | 3 | 211 | |
| 200 | 230 | 512 | 270 | 200 | 336 | 295 | 12-Φ23 | 21 | 3 | 266 | |
| 250 | 250 | 602 | 350 | 250 | 405 | 355 | 12-Φ26 | 25 | 3 | 319 | |
| 300 | 270 | 705 | 350 | 300 | 460 | 410 | 12-Φ26 | 28 | 4 | 370 | |
| 350 | 290 | 782 | 450 | 350 | 520 | 470 | 16-Φ26 | 28 | 4 | 430 | |
| 400 | 310 | 880 | 480 | 400 | 580 | 525 | 16-Φ30 | 28 | 4 | 475 | |
| 500 | 350 | 1055 | 600 | 500 | 715 | 650 | 20-Φ34 | 29 | 4 | 580 | |
| 600 | 390 | 1260 | 600 | 600 | 840 | 770 | 20-Φ40 | 38 | 4 | 680 |
