Short Description

Model No.: SJ-CV-21 Hits: 74

China Tilting Disc Check Valve Manufacturer Shinjo Supplies Tilting Disc Check Valve with Counterweight Arm & Cylinder, Cast iron, Ductile iron, WCB.
Request a quote Share

Key Specifications / Features

Slanting Check Valves are used on the outlet of the water pump of industrial water supply and sludge treatment plant to prevent the medium inside the pipe network from going back, and remove automatically the destructive water hammer so as to ensure both pump and pipeline not to get damaged. It consists of body, disc, buffer and micro-adjusting valve. And it features by the brand new structure, small volume, small fluid resistance, reliable seal, wearable and good buffering performance. It is really the best product for industrial use of water and city sludge drainage.

Specifications
Part Body Disc Seal-Ring Stem Packing
Material Casting Iron Casting Iron, Cast steel,Ductile Oil-Resisting Chemigum, Chloroprene Rubber Stainless Steel PTFE

Materials
Model PN(MPa) Test pressure (MPa) Working pressure Medium temperature Suitable medium
Casing Seal
H47X,H47H,HH47X, HH47XF ,HH47H, HDH47X 1.0 1.5 1.1 1.0 ≤ 80 °C Water, oil good, sea water, sludge
1.6 2.4 1.75 1.6
2.5 3.75 2.75 2.5

Dimensions

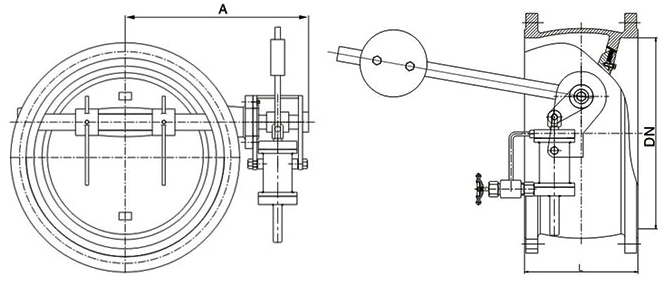

Tilting Disc Check Valve with Counterweight Arm & Cylinder Structure
