Short Description

Model No.: SJ-PCV-06S Hits: 51

China Pneumatic Angle Type High Pressure Regulating Valve Manufacturer Shinjo Supplies Pneumatic Angle Type High Pressure Regulating Valve, DN40-DN200, Class 150, 300, 600, 900, 1500 LB.
Request a quote Share

Key Specifications / Features

BRIEF INTRODUCTION

The ZMAS pneumatic angle type high pressure regulating valve applies with the top-guided structure, and equipped with the multi-spring diaphragm actuator. It has many advantages such as compact structure, light weight, quick action, "~" shape flow channel,less losses of the pressure reduction, accurate flow characteristic, convenient installation and so on. This series valves can be widely used for the medium with the high viscosity,crystallization, suspended particles and so on. Because of the 90° angle joint, this series valve has not the dead angle and easy to be cleaned, so it is especially suit for the food industry.



STRUCTURE AND MATERIAL

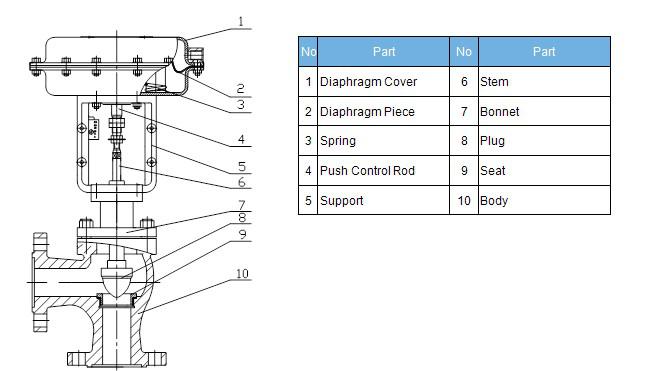

ZMAS Pneumatic Angle Type High Pressure Regulating Valve Structure
ZMAS Pneumatic Angle Type High Pressure Regulating Valve Material


TECHNICAL PARAMETER

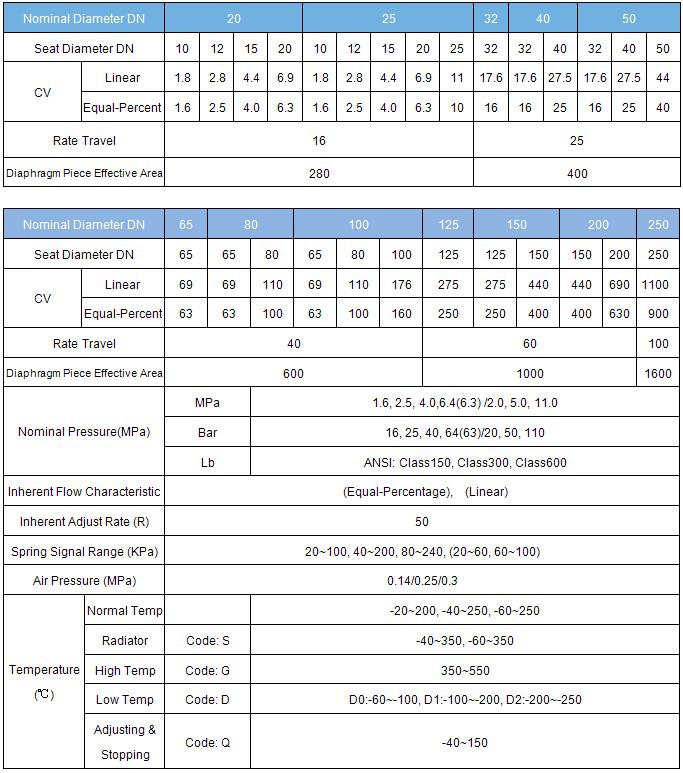

ZMAS Pneumatic Angle Type High Pressure Regulating Valve Data
