Butt-welded Triple Offset Butterfly Valve, PN10/16
Key Specifications / Features
Model No.: Hits: 17
China Butt-welded Butterfly Valve Manufacturer Shinjo Supplies Butt-welded Triple Offset Butterfly Valve, PN10/16, Size from DN80 to DN1800 mm.
Request a quote
Share
Tags:
Detail Information
On this page
Butterfly Valve type: Triple Offset
Body material: Cast Steel
Size: DN80 to DN1800 mm
Pressure : 1.0 Mpa, 1.6 Mpa
End connection: Butt-welded
Normal diameter: 2"~80" (DN50~DN2000).
End connection: Flanged, Butt Welded, Wafer, Lugged
Pressure range: PN10, PN16, PN25, PN40, PN63, PN100, 150LB, 300LB, 600LB
Flange standard : EN 1092-1, JIS, DIN, ANSI

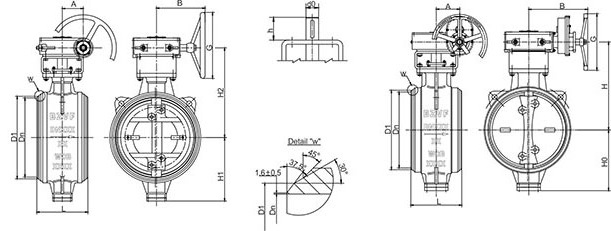

Butt-welded Triple Offset Butterfly Valve Structure Drawing:
Body material: Cast Steel
Size: DN80 to DN1800 mm
Pressure : 1.0 Mpa, 1.6 Mpa
End connection: Butt-welded
Product Range:
Body Material: Stainless Steel, Carbon Steel, Bronze C95800, Alloy Steel, Titanium, 904l, Cast Steel.Normal diameter: 2"~80" (DN50~DN2000).
End connection: Flanged, Butt Welded, Wafer, Lugged
Pressure range: PN10, PN16, PN25, PN40, PN63, PN100, 150LB, 300LB, 600LB
Flange standard : EN 1092-1, JIS, DIN, ANSI
Butt-welded Triple Offset Butterfly Valve Structure Drawing:
| DN | NPS | L | Welded Dimensions | Dimensions | Top Flange | Weight（kg） | |||||||
| Dn | D1 | H0 | H | A | B | G | ISO 5211 | d0 | h | ||||
| 80 | 3” | 180 | 82 | 91 | 85 | 225 | 50 | 144 | 180 | F07 | 16 | 35 | 18 |
| 100 | 4” | 190 | 106 | 117 | 100 | 245 | 50 | 144 | 180 | F07 | 18 | 40 | 20 |
| 125 | 5” | 200 | 132 | 144 | 170 | 290 | 63 | 200 | 300 | F10 | 22 | 45 | 32 |
| 150 | 6” | 210 | 159 | 172 | 180 | 310 | 63 | 200 | 300 | F10 | 25 | 50 | 41 |
| 200 | 8” | 230 | 206 | 223 | 205 | 360 | 80 | 230 | 350 | F12 | 30 | 60 | 56 |
| 250 | 10” | 250 | 259 | 278 | 235 | 395 | 80 | 230 | 350 | F12 | 35 | 70 | 69 |
| 300 | 12” | 270 | 308 | 329 | 265 | 425 | 125 | 260 | 400 | F14 | 40 | 80 | 101 |
| 350 | 14” | 290 | 340 | 362 | 305 | 475 | 125 | 260 | 400 | F14 | 45 | 90 | 148 |
| 400 | 16” | 310 | 388 | 413 | 335 | 520 | 125 | 260 | 400 | F16 | 50 | 100 | 193 |
| 450 | 18” | 330 | 439 | 464 | 365 | 550 | 125 | 260 | 400 | F16 | 50 | 100 | 221 |
| 500 | 20” | 350 | 488 | 516 | 405 | 615 | 160 | 290 | 500 | F25 | 55 | 110 | 306 |
| 600 | 24” | 390 | 589 | 619 | 465 | 665 | 200 | 418 | 600 | F25 | 70 | 130 | 469 |
| 700 | 28” | 430 | 693 | 721 | 540 | 730 | 200 | 418 | 600 | F30 | 80 | 130 | 684 |
| 800 | 32” | 470 | 793 | 825 | 625 | 865 | 263 | 510 | 700 | F30 | 90 | 160 | 954 |
| 900 | 36” | 510 | 894 | 927 | 690 | 930 | 263 | 510 | 700 | F30 | 100 | 170 | 1293 |
| 1000 | 40” | 550 | 996 | 1029 | 755 | 1030 | 263 | 510 | 700 | F35 | 110 | 170 | 1431 |
| 1200 | 48” | 630 | 1194 | 1235 | 880 | 1165 | 333 | 550 | 800 | F35 | 130 | 200 | 2121 |
| 1400 | 56” | 710 | 1394 | 1440 | 1010 | 1335 | 333 | 550 | 800 | F40 | 150 | 200 | 2553 |
| 1600 | 64” | 790 | 1594 | 1640 | 1125 | 1470 | 374 | 590 | 900 | F40 | 180 | 230 | 3409 |
| 1800 | 72” | 870 | 1794 | 1840 | 1240 | 1585 | 453 | 635 | 900 | F48 | 210 | 240 | 4735 |
