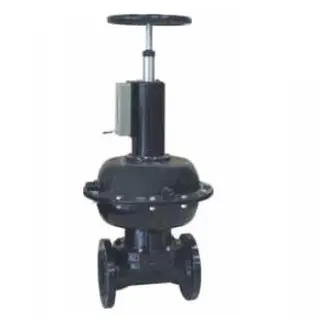

Pneumatic Rubber Lined Diaphragm Valve Normally Opened, WCB, Cast Iron, Ductile iron
Key Specifications / Features
Model No.: SJ-DV-02 Hits: 103
Pneumatic Rubber Lined Diaphragm Valve Normally Opened, WCB, Cast Iron, Ductile iron
Request a quote
Share
Tags:
Detail Information
G6K41 Normally open flanged rubber lined diaphragm valve
Diaphragm valve is one special cut-off valve; Compared to other valve, diaphragm valve are equipped with below fetures:
1. No leakage inside due to the elastic seal;
2. Streamlined runner and small pressure loss
3. No need of packing, then no outward leakage
4. Parts above the diaphragm such as bonnet, stem, etc can not be eroded by medium, for the diaphragm cut off the connection between medium and bonnet.
5. Replaceable diaphragm and low maintenance cost
6. Various lining materials to choose for different medium, and good anti-corrosive.
Standard of G6K41 Normally open flanged rubber lined diaphragm valve
1. Design and manufacture: GB12239
2. Structure length: GB12221
3. Flange end standard: HG20592
4. Test and inspection: GB/T13927
Parameter of G6K41 Normally open flanged rubber lined diaphragm valve
Main Parts of G6K41 Normally open flanged rubber lined diaphragm valve
Pressure-Temperature Level
Flow characteristics
Diaphragm valve is one special cut-off valve; Compared to other valve, diaphragm valve are equipped with below fetures:
1. No leakage inside due to the elastic seal;
2. Streamlined runner and small pressure loss
3. No need of packing, then no outward leakage
4. Parts above the diaphragm such as bonnet, stem, etc can not be eroded by medium, for the diaphragm cut off the connection between medium and bonnet.
5. Replaceable diaphragm and low maintenance cost
6. Various lining materials to choose for different medium, and good anti-corrosive.
Standard of G6K41 Normally open flanged rubber lined diaphragm valve
1. Design and manufacture: GB12239
2. Structure length: GB12221
3. Flange end standard: HG20592
4. Test and inspection: GB/T13927
Parameter of G6K41 Normally open flanged rubber lined diaphragm valve
| Model | PN(MPa) | Pressure (Mpa) | Applicable medium | Working Temperature | |
| Shell Test | Sealing Test | ||||
| G6K41(W/J/F46)-6 | 0.6 | 0.9 | 0.66 | Non-corrosive fluid | ≤100℃ |
| Generally corrosive fluid | ≤85℃ | ||||
| G6K41(W/J/F46)-4 | 0.4 | 0.6 | 0.44 | Strong acid, alkali and various organic solvents (Exclusive of molten alkali metal and elemental fluorine) | ≤150℃ |
| Part Name | Valve Body | Disc | Cylinder, Cyinder cover | Screw, body, piston | Diaphragm |
| Material | HT200 Lining fluorine plastic, Lining Rubber | HT200 | HT200 | 35 | Natural rubber, fluorine plastic |
Pressure-Temperature Level
Flow characteristics
