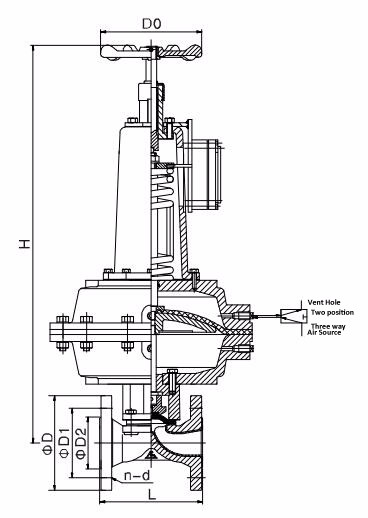

EG6K41J BS Standard Pneumatic Diaphragm Valve Normally Opened
Diaphragm valve is one special cut-off valve; Compared to other valve, diaphragm valve are equipped with below fetures:
1. No leakage inside due to the elastic seal;
2. Streamlined runner and small pressure loss
3. No need of packing, then no outward leakage
4. Parts above the diaphragm such as bonnet, stem, etc can not be eroded by medium, for the diaphragm cut off the connection between medium and bonnet.
5. Replaceable diaphragm and low maintenance cost
6. Various lining materials to choose for different medium, and good anti-corrosive.
Standard of EG6K41J BS Standard Pneumatic Diaphragm Valve Normally Opened
1. Design and manufacture: GB12239
2. Structure length: GB12221
3. Flange end standard: HG20592
4. Test and inspection: GB/T13927
Parameter of EG6K41J BS Standard Pneumatic Diaphragm Valve Normally Opened
| Model | PN(MPa) | Pressure (Mpa) | Applicable medium | Working Temperature | |
| Shell Test | Sealing Test | ||||
| EG6K41(W/J/F46)-6 | 0.6 | 0.9 | 0.66 | W: Non-corrosive fluid | ≤100℃ |
| EG6K41(W/J/F46)-10 | 1.0 | 1.5 | 1.1 | J: Generally corrosive fluid | ≤85℃ |
| EG6K41(W/J/F46)-16 | 1.6 | 2.4 | 1.76 | FS: Strong acid, alkali and various organic solvents (Exclusive of molten alkali metal and elemental fluorine) | ≤150℃ |
Pressure-Temperature Level
Flow characteristics
