ZMAT Corrosion Resistant Lined Control Diaphragm valve, FEP PTFE PFA
Key Specifications / Features
Model No.: SJ-DV-04 Hits: 131
Detail Information
Valve body material:(1).carbon steel lined with F46, (2).carbon steel lined with PFA, (3)SS304 lined with F46, (4)SS304 lined with PFA;
Valve trim material:carbon steel,stainless steel;
Valve seat diameter:DN15~DN300;
Valve pressure:PN6,PN10,PN16,150LB,PN25;
Flow characteristic:equal percentage,shut-off;
Corrosion Resistant Rubber Lined Control Diaphragm valve
Rubber lined control diaphragm valve consists of multi-spring pneumatic diaphragm actuator and diaphragm valve.The diaphragm valve body is smoothly flowed, the throttle element is an elastic diaphragm, and there is no stuffing box on the valve bonnet. Therefore, the valve circulation capacity is larger than the general control valve and there is no leakage, and control diaphragm valve can be used as a shut-off valve within the allowable pressure difference range. The lined control diaphragm valve is suitable for these occasions: high viscosity fluids, suspended particles, fibrous media and toxic media, corrosive medium.
The Features of Rubber Lined Control Diaphragm Valve:
1. Corrosion resistance: It is resistant to corrosion of all medium (including concentrated nitric acid and aqua regia);
2. Good sealing performance: there is no stuffing box on the bonnet to ensure no leakage;
3. Small leakage: since the valve plug and valve seat are soft sealed,the leakage is low;
4. With multi-spring pneumatic diaphragm actuator,the output torque is large and the structure is compact.
The Specifications of Lined Control Diaphragm Valve:
1.Product name:rubber lined control diaphragm valve;
2.Valve body material:(1).carbon steel lined with F46, (2).carbon steel lined with PFA, (3)SS304 lined with F46, (4)SS304 lined with PFA;
3.Valve trim material:carbon steel,stainless steel;
4.Valve seat diameter:DN15~DN300;
5.Valve pressure:PN6,PN10,PN16,150LB,PN25;
6.Flow characteristic:equal percentage,shut-off;
7.Connection type:flanged;
Technical Parameters of Lined Control Diaphragm Valve:
| DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |||
| KV | 8 | 12 | 16 | 28 | 60 | 68 | 90 | 160 | 300 | 500 | 600 | 1200 | 2100 | 3500 | |||
| Actuator Model | ZPL6102D(R) | ZPL6103D(R) | ZPL6104D(R) | ZPL6105D(R) | ZPL6106D(R) | ||||||||||||
| Travel(mm) | 10 | 15 | 23 | 38 | 50 | 90 | |||||||||||
| Pressure(MPa) | 0.6MPa,1.0MPa | ||||||||||||||||
| Action Mode | air-to-close(B),air-to-open(K) | ||||||||||||||||
| Signal Range(KPa) | 20-100,40-200,20-60,60-100 | ||||||||||||||||
| Flow Characteristic | close to “quick-open type” | ||||||||||||||||
| Max
Permissible Pressure When Closed |
Signal
Pressure |
P2=0 | 120 | 0.9 | 0.9 | 0.4 | 0.4 | 0.3 | 0.2 | 0.2 | 0.1 | 0.05 | 0.015 | 0.01 | 0.06 | 0.03 | 0.01 |
| 140 | 1 | 1 | 0.8 | 0.8 | 0.6 | 0.4 | 0.4 | 0.2 | 0.1 | 0.03 | 0.02 | 0.12 | 0.06 | 0.02 | |||
| P1=P2 | 120 | 0.45 | 0.45 | 0.2 | 0.2 | 0.15 | 0.1 | 0.1 | 0.05 | 0.02 | 0.07 | 0.05 | 0.03 | 0.05 | 0.06 | ||
| 140 | 0.9 | 0.9 | 0.4 | 0.4 | 0.3 | 0.2 | 0.2 | 0.1 | 0.05 | 0.14 | 0.1 | 0.06 | 0.03 | 0.01 | |||

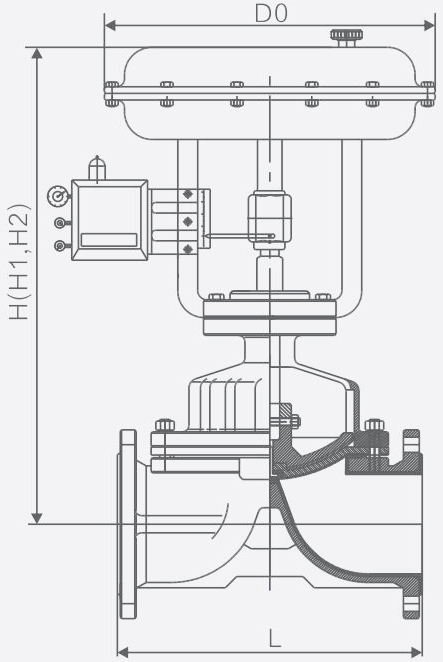

The Dimensions of Lined Control Diaphragm Valve:
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| D0 | 290 | 290 | 290 | 290 | 290 | 290 | 365 | 365 | 365 | 475 | 475 | 475 | 580 | 580 |
| H1（air-to-open） | 479 | 479 | 479 | 538 | 553 | 562 | 754 | 775 | 857 | 952 | 989 | 1084 | 1200 | 1235 |
| H2 （air-to-close） | 532 | 532 | 532 | 617 | 632 | 641 | 855 | 876 | 958 | 1077 | 1114 | 1209 | 1200 | 1235 |
| L | 125 | 135 | 145 | 160 | 180 | 210 | 250 | 300 | 350 | 400 | 460 | 570 | 680 | 750 |
