Cast Iron Ball Valve, DIN 3202 F4 F5
Key Specifications / Features
Model No.: Hits: 70
China Cast Iron Ball Valve Manufacturer Shinjo Supplies Cast Iron Flanged Ball Valve with DIN 3202 F4 F5, DIN 3357 standard.
Request a quote Tags:
Next: V-port Ball Valve
Previous: CAST IRON JIS 10/16K BALL VALVE
Detail Information
SIZE RANGE AND PRESSURE CLASS
Size from 1/2” to 8” (DN15-DN200)
Pressure rating: 1.6 Mpa
DESIGN STANDARD
Design and Manufacture : DIN3357
Face to Face Length standards : DIN3202 DN15-DN100(F4), DN125-DN250 (F5)
Flange Ends Dimensions standards: DIN2533
Pressure test : DIN3230
TECHNICAL FEATURES
Cast iron body
Split body, side entry design
Floating ball design
Size from 1/2” to 8” (DN15-DN200)
Pressure rating: 1.6 Mpa
DESIGN STANDARD
Design and Manufacture : DIN3357
Face to Face Length standards : DIN3202 DN15-DN100(F4), DN125-DN250 (F5)
Flange Ends Dimensions standards: DIN2533
Pressure test : DIN3230
TECHNICAL FEATURES
Cast iron body
Split body, side entry design
Floating ball design
| Main Parts and Materials | ||
| Number | Part Name | Material |
| 1 | Body | Grey Cast Iron(GG25 or GGG40) |
| 2 | Bonnet | Grey Cast Iron(GG25 or GGG40) |
| 3 | Nut | Carbon Steel |
| 4 | Bolt | Carbon Steel |
| 5 | Ball | Stainless steel(x10cr13) |
| 6 | Seat | PTFE |
| 7 | Stem | Stainless steel(x10cr13) |
| 8 | Gland | Cast Iron(GG25 or GGG40) |
| 9 | Gland Bolt | Carbon Steel |
| 10 | Stop Collar | Carbon Steel |
| 11 | Lever | Ductile Iron(GGG40) |

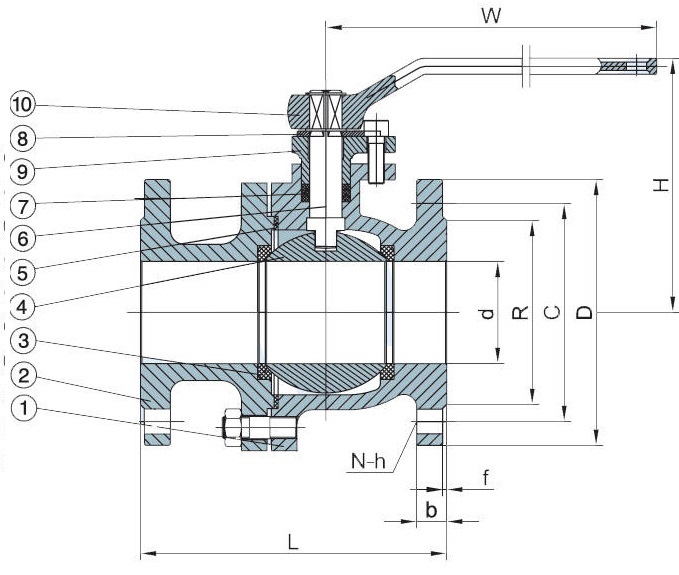

| Main Dimensions | ||||||||
| Norminal diameter | L | H | W | D2 | D1 | D | b | n-b |
| 15 | 115 | 78 | 130 | 45 | 65 | 95 | 14 | 4-Φ14 |
| 20 | 120 | 113 | 160 | 58 | 75 | 105 | 16 | 4-Φ14 |
| 25 | 125 | 107 | 160 | 68 | 85 | 115 | 16 | 4-Φ14 |
| 32 | 130 | 113 | 160 | 78 | 105 | 140 | 18 | 4-Φ18 |
| 40 | 140 | 130 | 250 | 88 | 110 | 150 | 18 | 4-Φ18 |
| 50 | 150 | 146 | 250 | 102 | 125 | 165 | 20 | 4-Φ18 |
| 65 | 170 | 176 | 350 | 122 | 145 | 185 | 20 | 4-Φ18 |
| 80 | 180 | 222 | 350 | 138 | 160 | 200 | 22 | 8-Φ18 |
| 100 | 190 | 222 | 400 | 158 | 180 | 220 | 24 | 8-Φ18 |
| 125 | 325 | 257 | 750 | 188 | 210 | 250 | 26 | 8-Φ18 |
| 150 | 350 | 275 | 850 | 212 | 240 | 285 | 28 | 8-Φ23 |
| 200 | 400 | 400 | 1200 | 268 | 295 | 340 | 30 | 12-Φ23 |
