F316 3PCS Stainless Steel Ball Valve Class 800/1500/2500
Features:
Size: 1/2"~2" (DN 15 - 50 mm).
Class: 800/1500/2500.
Three Pieces Forged Steel Body.
Floating Ball, Full Bore.
Anti-Static Device.
Screwed and Socket Welded Ends.
Blow-out Proof Stem.
Standard:
Design: ASME B16.34/BS 5351.
Face to Face: Manufacturer Standard.
End to End: Manufacturer Standard.
Threaded End: ASME B1.20.1.
Socket Welding & BW End: ASME B16.11.
Test: API 598/BS 6755.

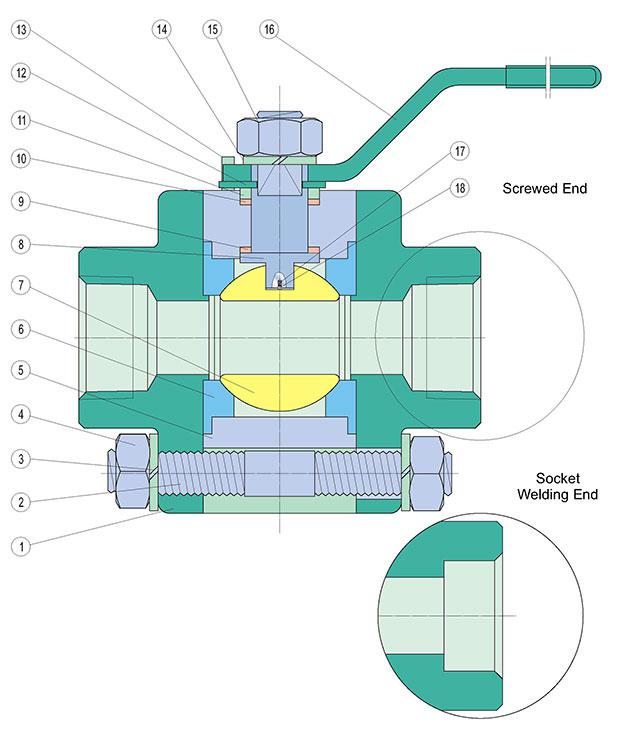

Parts Material: F316/316
1. Adapter: ASTM A182-F316.
2. Body Bolt: ASTM A193-B8.
3. Spring Washer: Stainless Steel.
4. Body Nut: ASTM A194-8.
5. Body: ASTM A182-F316.
6. Seat: PTFE.
7. Ball: ASTM A182-F316.
8. Stem: ASTM A276-316.
9. Thrust Washer: PTFE.
10. Stem Packing: PTFE.
11. Gland: ASTM A276-316.
12. Stop Plate: Carbon Steel.
13. Stop Pin: Stainless Steel.
14. Spring Washer: Stainless Steel.
15. Lever Nut: ASTM A194-8.
16. Lever: Carbon Steel.
17. Antistatic Spring: Stainless Steel.
18. Steel Ball: Stainless Steel.
Dimension & Weight
Features:
Size: 1/2"~2" (DN 15 - 50 mm).
Class: 800/1500/2500.
Three Pieces Forged Steel Body.
Floating Ball, Full Bore.
Anti-Static Device.
Screwed and Socket Welded Ends.
Blow-out Proof Stem.
Standard:
Design: ASME B16.34/BS 5351.
Face to Face: Manufacturer Standard.
End to End: Manufacturer Standard.
Threaded End: ASME B1.20.1.
Socket Welding & BW End: ASME B16.11.
Test: API 598/BS 6755.
Parts Material: F316/316
1. Adapter: ASTM A182-F316.
2. Body Bolt: ASTM A193-B8.
3. Spring Washer: Stainless Steel.
4. Body Nut: ASTM A194-8.
5. Body: ASTM A182-F316.
6. Seat: PTFE.
7. Ball: ASTM A182-F316.
8. Stem: ASTM A276-316.
9. Thrust Washer: PTFE.
10. Stem Packing: PTFE.
11. Gland: ASTM A276-316.
12. Stop Plate: Carbon Steel.
13. Stop Pin: Stainless Steel.
14. Spring Washer: Stainless Steel.
15. Lever Nut: ASTM A194-8.
16. Lever: Carbon Steel.
17. Antistatic Spring: Stainless Steel.
18. Steel Ball: Stainless Steel.
Dimension & Weight
| Size | D | L | H | W | B | J | NPT | Weight |
| IN | mm | mm | mm | mm | mm | mm | IN | Kg |
| 1/2 | 14 | 92 | 65 | 130 | 21.8 | 9.6 | 1/2" | 1.7 |
| 3/4 | 18 | 111 | 75 | 160 | 27.2 | 12.7 | 3/4" | 2.5 |
| 1 | 24 | 127 | 80 | 220 | 33.9 | 12.7 | 1" | 4.5 |
| 1-1/4 | 30 | 140 | 100 | 250 | 42.7 | 12.7 | 1-1/4" | 7 |
| 1-1/2 | 38 | 152 | 110 | 250 | 48.8 | 12.7 | 1-1/2" | 8. |
