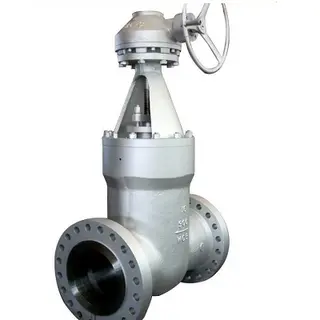

Pressure Seal Gate Valve, Class 2500LB, BW RF RTJ End
Key Specifications / Features
Model No.: Hits: 15
China Pressure Seal Gate Valve Manufacturer Shinjo Supplies Pressure Seal Gate Valve, Class 2500LB, BW RF RTJ End.
Request a quote
Tags:
Detail Information
Futures:
ASME B16.34,
Pressure Seal, OS&Y, Rising Stem, Non-rising Handwheel, Gear Operator
Flexible Wedge
BW RF RTJ End
ASTM A216 WCB, ASTM A351 CF8M, ASTM A217 WC6, ASTM A217 WC9

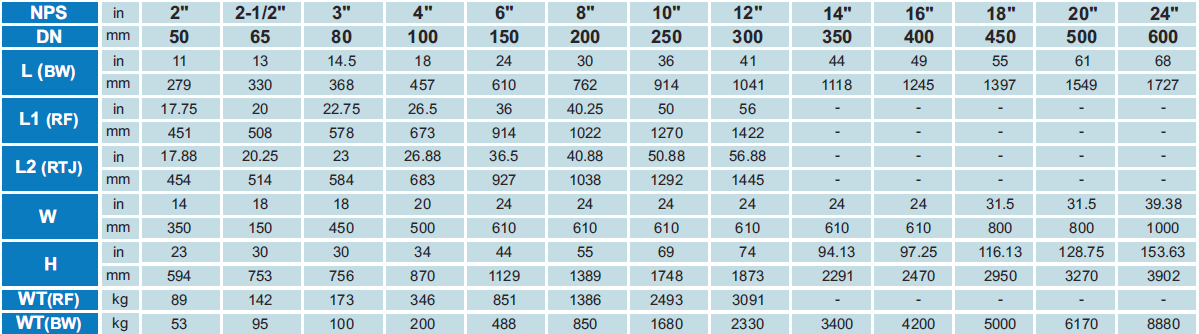

Pressure Seal Gate Valve, Class 2500LB Size Dimensions:
ASME B16.34,
Pressure Seal, OS&Y, Rising Stem, Non-rising Handwheel, Gear Operator
Flexible Wedge
BW RF RTJ End
ASTM A216 WCB, ASTM A351 CF8M, ASTM A217 WC6, ASTM A217 WC9
Pressure Seal Gate Valve, Class 2500LB Size Dimensions:
| Part | Standard | Stainless Steel | High temperature Service | ||
| BODY | ASTM A216-WCB | ASTM A351-CF8M | ASTM A217-WC6 | ASTM A217-WC9 | ASTM A217-C12A |
| BONNET | ASTM A105 | ASTM A182-F316 | ASTM A182-F11 | ASTM A182-F22 | ASTM A217-C12A |
| WEDGE |
ASTM A216- WCB/ER410 & ASTM A217-CA15 | ASTM A351- CF8M/STL.OVERLAY |
ASTM A217- WC6/ER410 & ASTM A217-CA15 | ASTM A217- WC9/ER410 & ASTM A217-CA15 | ASTM A217- C12A/ER410 |
| STEM NUT | ASTM A439 D-2 | ASTM A439 D-2 | ASTM A439 D-2 | ASTM A439 D-2 | ASTM A439 D-2 |
| GLAND FLANGE | ASTM A216-WCB | ASTM A351-CF8 | ASTM A216-WCB | ASTM A216-WCB | ASTM A216-WCB |
| HANDWHEEL | DUCTILE IRON | DUCTILE IRON | DUCTILE IRON | DUCTILE IRON | DUCTILE IRON |
| SEAT RING |
ASTM A105/STL.OVERLAY | ASTM A182- F316/STL.OVERLAY | ASTM A182- F11/STL.OVERLAY | ASTM A182- F22/STL.OVERLAY | ASTM A182- F6a/STL.OVERLAY |
| STEM | ASTM A182-F6a | ASTM A182-F316 | ASTM A182-F6a | ASTM A182-F6a | ASTM A182-F6a |
| BONNET SEAL RING |
ASTM A182- F304(4"&Smaller GRAPHITE) |
ASTM A182- F316L(4"&Smaller GRAPHITE) |
ASTM A182- F304(4"&Smaller GRAPHITE) |
ASTM A182- F304(4"&Smaller GRAPHITE) |
ASTM A182- F304(4"&Smaller GRAPHITE) |
| GLAND | ASTM A276-420 | ASTM A276-316 | ASTM A276-420 | ASTM A276-420 | ASTM A276-420 |
| RETAINING NUT FOR STEM NUT | CARBON STEEL | STAINLESS STEEL | CARBON STEEL | CARBON STEEL | CARBON STEEL |
| YOKE |
ASTM A216-WCB |
ASTM A351-CF8 |
ASTM A216-WCB& ASTM A217-WC6 | ASTM A216-WCB& ASTM A217-WC6 | ASTM A216-WCB |
| PACKING | GRAPHITE | GRAPHITE | GRAPHITE | GRAPHITE | GRAPHITE |
| BONNET SEPARATE RING | CARBON STEEL | ASTM A276-420 | ANSI 4140 | ANSI 4140 | ANSI 4140 |
| CLIPPING RING | ASTM A216-WCB | ASTM A351-CF8 | ASTM A217-WC6 | ASTM A217-WC6 | ASTM A276-420 |
| HANDWHEEL NUT | CARBON STEEL | STAINLESS STEEL | CARBON STEEL | CARBON STEEL | CARBON STEEL |
| BONNET STUD | ASTM A193-B7 | ASTM A193-B8 | ASTM A193-B16 | ASTM A193-B16 | ASTM A193-B16 |
| BONNET NUT | ASTM A194-2H | ASTM A194-8 | ASTM A194-4 | ASTM A194-4 | ASTM A194-4 |
| YOKE STUD | ASTM A193-B7 | ASTM A193-B8 | ASTM A193-B16 | ASTM A193-B16 | ASTM A193-B16 |
| YOKE NUT | ASTM A194-2H | ASTM A194-8 | ASTM A194-4 | ASTM A194-4 | ASTM A194-4 |
| GLAND EYE BOLT | ASTM A193-B7 | ASTM A193-B8 | ASTM A193-B16 | ASTM A193-B16 | ASTM A193-B16 |
| GLAND NUT | ASTM A194-2H | ASTM A194-8 | ASTM A194-4 | ASTM A194-4 | ASTM A194-4 |
| BONNET THRUST RING | CARBON STEEL | ASTM A276-420 | AISI 4140 | AISI 4140 | ANSI 4140 |
| SUPPORTING COVER | ASTM A105 | ASTM A276-420 | AISII 4140 | AISI 4140 | ANSI 4140 |
| CLIPPING RING BOLT | CARBON STEEL | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL |
| RIVET | CARBON STEEL | STAINLESS STEEL | CARBON STEEL | CARBON STEEL | STAINLESS STEEL |
| NAME PLATE | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL |
