Pressure Seal Globe Valve, Cast Carbon Steel, Class 900LB, BW RF RTJ End
Key Specifications / Features
Model No.: Hits: 16
China Pressure Seal Globe Valve Manufacturer Shinjo Supplies Pressure Seal Globe Valve, Cast Carbon Steel, Class 900LB, BW RF RTJ End.
Request a quote
Tags:
Detail Information
Futures:
ASME B16.34,
Pressure Seal, OS&Y, Rising Stem, Handwheel, Gear Operator
Swivel Disc
BW RF RTJ End
ASTM A216 WCB, ASTM A351 CF8M, ASTM A217 WC6, ASTM A217 WC9

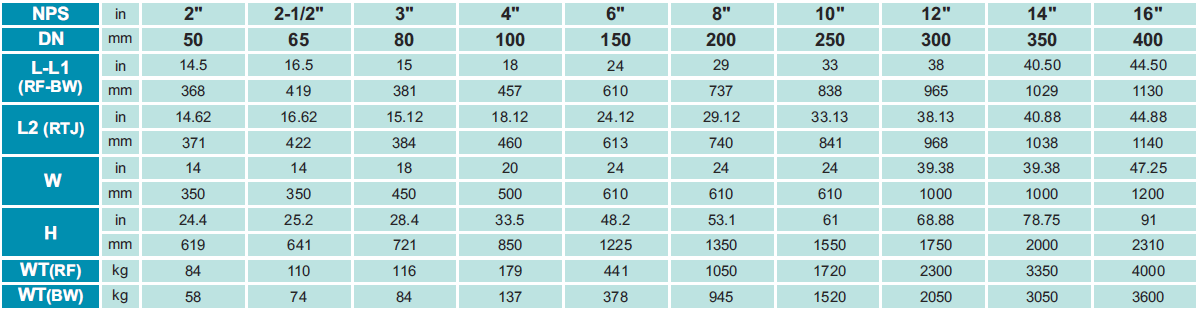

Pressure Seal Globe Valve, Cast Carbon Steel, Class 900LB Size Dimensions:
ASME B16.34,
Pressure Seal, OS&Y, Rising Stem, Handwheel, Gear Operator
Swivel Disc
BW RF RTJ End
ASTM A216 WCB, ASTM A351 CF8M, ASTM A217 WC6, ASTM A217 WC9
Pressure Seal Globe Valve, Cast Carbon Steel, Class 900LB Size Dimensions:
| Part | Standard | Stainless Steel | High temperature Service | ||
| BODY | ASTM A216- WCB/STL.OVERLAY | ASTM A351- CF8M/STL.OVERLAY | ASTM A217- WC6/STL.OVERLAY | ASTM A217- WC9/STL.OVERLAY | ASTM A217- C12A/STL.OVERLAY |
| BONNET | ASTM A105 | ASTM A182-F316 | ASTM A182-F11 | ASTM A182-F22 | ASTM A217-C12A |
| DISC | ASTM A182-F6a & ASTM A105/ER410 | ASTM A182-F316 | ASTM A182-F6a & ASTM A182-F11/ER410 | ASTM A182-F6a & ASTM A182-F22/ER410 | ASTM A182-F6a |
| STEM NUT | ASTM A439 D-2 | ASTM A439 D-2 | ASTM A439 D-2 | ASTM A439 D-2 | ASTM A439 D-2 |
| GLAND FLANGE | ASTM A216-WCB | ASTM A351-CF8 | ASTM A216-WCB | ASTM A216-WCB | ASTM A216-WCB |
| HANDWHEEL | DUCTILE IRON | DUCTILE IRON | DUCTILE IRON | DUCTILE IRON | DUCTILE IRON |
| BONNET SEAL RING |
ASTM A182- F304(4"&Smaller GRAPHITE) |
ASTM A182- F316L(4"&Smaller GRAPHITE) |
ASTM A182- F304(4"&Smaller GRAPHITE) |
ASTM A182- F304(4"&Smaller GRAPHITE) |
ASTM A182- F304(4"&Smaller GRAPHITE) |
| STEM | ASTM A182-F6a | ASTM A182-F316 | ASTM A182-F6a | ASTM A182-F6a | ASTM A182-F6a |
| RETAINING NUT FOR STEM NUT | CARBON STEEL |
STAINESS STEEL |
CARBON STEEL |
CARBON STEEL |
CARBON STEEL |
| GLAND | ASTM A276-420 | ASTM A182-F316 | ASTM A276-420 | ASTM A276-420 | ASTM A276-420 |
| HANDWHEEL NUT | CARBON STEEL | STAINESS STEEL | CARBON STEEL | CARBON STEEL | CARBON STEEL |
| DISC NUT | ASTM A276-420 | ASTM A182-F316 | ASTM A276-420 | ASTM A276-420 | ASTM A276-420 |
| STEM WASHER | ASTM A276-430 | N/A | ASTM A276-430 | ASTM A276-430 | ASTM A276-430 |
| THRUST RING | CARBON STEEL | AITM A276-420 | AISI 4140 | AISI 4140 | AISI 4140 |
| PACKING | GRAPHITE | GRAPHITE | GRAPHITE | GRAPHITE | GRAPHITE |
| CLIPPING RING | ASTM A216-WCB | ASTM A351-CF8 | ASTM A217-WC6 | ASTM A217-WC6 | ASTM A276-420 |
| YOKE STUD | ASTM A193-B7 | ASTM A193-B8 | ASTM A193-B16 | ASTM A193-B16 | ASTM A193-B16 |
| YOKE NUT | ASTM A194-2H | ASTM A194-8 | ASTM A194-4 | ASTM A194-4 | ASTM A194-4 |
| GLAND EYE BOLT | ASTM A193-B7 | ASTM A193-B8 | ASTM A193-B16 | ASTM A193-B16 | ASTM A193-B16 |
| GLAND NUT | ASTM A194-2H | ASTM A194-8 | ASTM A194-4 | ASTM A194-4 | ASTM A194-4 |
| BONNET NUT 1 | CARBON STEEL | ASTM A276-420 | AISI 4140 | AISI 4140 | AISI 4140 |
| CLIPPING RINGBOLT | CARBON STEEL | STAINESS STEEL | STAINESS STEEL | STAINESS STEEL | STAINESS STEEL |
| BONNET NUT 2 | CARBON STEEL | ASTM A276-420 | AISI 4140 | AISI 4140 | AISI 4140 |
| ORIENTED BLOCK | CARBON STEEL | ASTM A276-420 | CARBON STEEL | CARBON STEEL | CARBON STEEL |
| YOKE | ASTM A216-WCB | ASTM A351-CF8 | ASTM A216-WCB& ASTM A217-WC6 | ASTM A216-WCB& ASTM A217-WC6 | ASTM A217-C12A |
