Class 1500LB-2500LB Floating Ball Valves, Full / Reduced Bore
Key Specifications / Features
Model No.: SJ-BV-11 Hits: 496
China Class 1500LB-2500LB Floating Ball Valves Manufacturer Shinjo Supplies Class 1500LB-2500LB Floating Ball Valves, Full/Reduced Bore, Nylon Seated Floating Split Body.
Request a quote Tags:
Detail Information
Class 1500LB-2500LB Floating Ball Valves, Full / Reduced Bore
Performance:
Size: 1/2"~4"(DN 15 - 200 mm).
Class: 150~2500 (PN 1.6 - 42 MPa).
Split Body, Forged Carbon Steel.
Floating Ball, Full & Reduced Bore.
Anti-Static Device.
Blow-out Proof Stem.
Fire Safe Design.
Low Emission.
Design: ASME B16.34/BS 5351.
Face to Face: ASME B16.10.
End to End: ASME B16.10.
End Flange: ASME B16.5.
BW End: ASME B16.25.
Test: API 598 / BS 6755.
Fire Safe Test: API 607/API 6FA.
Special: NACE MR-01-75.
Full Bore-Dimensions and Weights:
Reduced Bore-Dimensions and Weights:
Performance:
Size: 1/2"~4"(DN 15 - 200 mm).
Class: 150~2500 (PN 1.6 - 42 MPa).
Split Body, Forged Carbon Steel.
Floating Ball, Full & Reduced Bore.
Anti-Static Device.
Blow-out Proof Stem.
Fire Safe Design.
Low Emission.
Design: ASME B16.34/BS 5351.
Face to Face: ASME B16.10.
End to End: ASME B16.10.
End Flange: ASME B16.5.
BW End: ASME B16.25.
Test: API 598 / BS 6755.
Fire Safe Test: API 607/API 6FA.
Special: NACE MR-01-75.

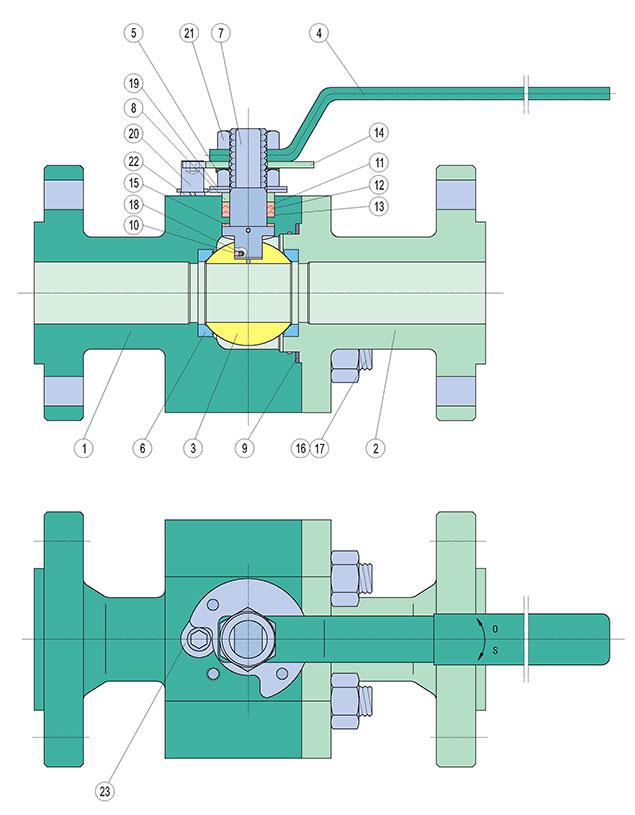

| No. | Part | A105/ENP | A105/316 | F316/316 | LF2/316NACE |
| 1 | Body | ASTM A105 | ASTM A105 | ASTM A182-F316 | ASTM A350-LF2 |
| 2 | Adapter | ASTM A105 | ASTM A105 | ASTM A182-F316 | ASTM A350-LF2 |
| 3 | Ball | ASTM A105/ENP | ASTM A182-F316 | ASTM A182-F316 | ASTM A182-F316 |
| 4 | Lever | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
| 5 | Locked Washer | Carbon Steel | Carbon Steel | Stainless Steel | Carbon Steel |
| 6 | Seat | PTFE / Nylon | PTFE / Nylon | PTFE / Nylon | PTFE / Nylon |
| 7 | Stem | ASTM A182-F6a | ASTM A182-F316 | ASTM A182-F316 | ASTM A182-F316 |
| 8 | Gland | ASTM A276-410 | ASTM A182-F316 | ASTM A182-F316 | ASTM A182-F316 |
| 9 | Body Gasket | 304SS+Graphite | 316SS+Graphite | 316SS+Graphite | 316SS+Graphite |
| 10 | Steel Ball | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| 11 | Top Packing | PTFE / Graphite | PTFE / Graphite | PTFE / Graphite | PTFE / Graphite |
| 12 | Middle Packing | PTFE / Graphite | PTFE / Graphite | PTFE / Graphite | PTFE / Graphite |
| 13 | Bottom Packing | PTFE / Graphite | PTFE / Graphite | PTFE / Graphite | PTFE / Graphite |
| 14 | Stop Plate | Carbon Steel | Carbon Steel | Stainless Steel | Carbon Steel |
| 15 | Thrust Washer | PTFE | PTFE | PTFE | PTFE |
| 16 | Body Stud | ASTM A193-B7 | ASTM A193-B7 | ASTM A193-B8 | ASTM A320-L7M |
| 17 | Body Nut | ASTM A194-2H | ASTM A194-2H | ASTM A194-8 | ASTM A194-7M |
| 18 | Antistatic Spring | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| 19 | Dished Spring | Alloy Steel | Alloy Steel | Stainless Steel | Alloy Steel |
| 20 | Screw | Carbon Steel | Carbon Steel | Stainless Steel | Carbon Steel |
| 21 | Nut | Carbon Steel | Carbon Steel | Stainless Steel | Carbon Steel |
| 22 | Washer | Carbon Steel | Carbon Steel | Stainless Steel | Carbon Steel |
| 23 | Locked Plate | Carbon Steel | Carbon Steel | Stainless Steel | Carbon Steel |

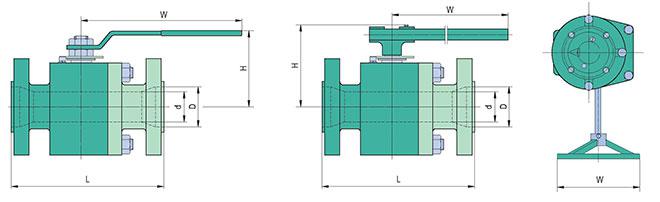

Full Bore-Dimensions and Weights:
| Size | D | L | H | W | Weight |
| in | mm | mm | mm | mm | Kg |
| 1/2 | 13 | 216 | 75 | 140 | 5 |
| 3/4 | 19 | 229 | 91 | 180 | 8 |
| 1 | 25 | 254 | 108 | 250 | 10 |
| 1-1/2 | 38 | 305 | 133 | 400 | 20 |
| 2 | 51 | 368 | 150 | 500 | 30 |
| 3 | 76 | 470 | 160 | 500 | 65 |
| Size | D | L | H | W | Weight |
| in | mm | mm | mm | mm | Kg |
| 1/2 | 13 | 264 | 88 | 230 | 7.5 |
| 3/4 | 19 | 273 | 117 | 230 | 12 |
| 1 | 25 | 308 | 128 | 300 | 15 |
| 1-1/2 | 38 | 384 | 148 | 400 | 30 |
| 2 | 51 | 451 | 183 | 500 | 37.5 |
Reduced Bore-Dimensions and Weights:
| Size | D | D | L | H | W | Weight |
| in | mm | mm | mm | mm | mm | Kg |
| 3/4*1/2 | 13 | 19 | 229 | 75 | 140 | 7 |
| 1*3/4 | 19 | 25 | 254 | 91 | 180 | 9.5 |
| 1-1/2*1 | 25 | 38 | 305 | 108 | 250 | 16.5 |
| 2*1-1/2 | 38 | 51 | 368 | 133 | 400 | 23 |
| 3*2 | 51 | 76 | 470 | 150 | 500 | 60 |
| 4*3 | 76 | 102 | 546 | 160 | 500 | 78 |
| Size | d | D | L | H | W | Weight |
| in | mm | mm | mm | mm | mm | Kg |
| 3/4*1/2 | 13 | 19 | 273 | 88 | 230 | 11 |
| 1*3/4 | 19 | 25 | 308 | 117 | 230 | 14 |
| 1-1/2*1 | 25 | 38 | 384 | 128 | 300 | 25 |
| 2*1-1/2 | 38 | 51 | 451 | 148 | 400 | 35 |
| 3*2 | 51 | 76 | 578 | 183 | 500 | 60 |
